UI Kit (uikit)

UI helper toolkit for OpenWebRX+ plugins. Provides a dockable panel, settings modal, plugin modals, toast notifications, loading overlays, and helper methods for other plugins to build UI.

Version: 0.3

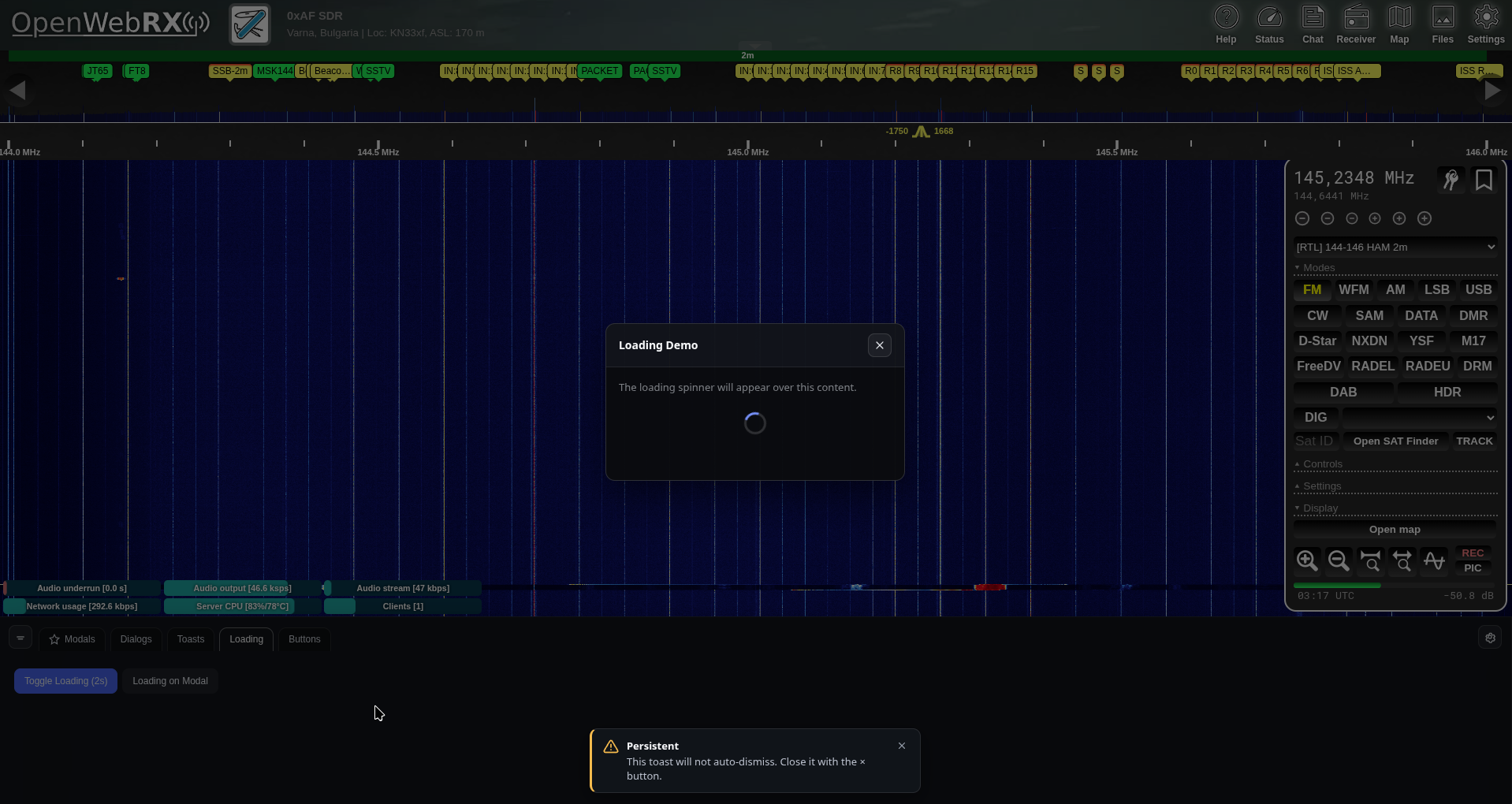

Preview

uikit

Load

Add to your plugins/receiver/init.js:

Plugins.uikit = Plugins.uikit || {};
Plugins.uikit.settings = {
  position:        'bottom',  // top | right | bottom | left
  visible:         true,
  mode:            'push',    // overlay | push
  opacityActive:   0.45,      // panel opacity when active (0.1–1.0)
  opacityInactive: 0.20,      // panel opacity when idle (0.1–1.0)
  autoHide:        false,     // hide panel on inactivity instead of fading
  autoHideDelay:   2          // idle timeout in seconds (0 = disabled, 2–10)
};

await Plugins.load('https://0xaf.github.io/openwebrxplus-plugins/receiver/uikit/uikit.js');

// Optional but recommended: companion theme that matches the uikit palette
await Plugins.load('https://0xaf.github.io/openwebrxplus-plugins/receiver/ui_basic_theme/ui_basic_theme.js');

After loading, select UI Basic in the OWRX+ theme list to apply the recommended flat dark theme. See ui_basic_theme for details.

Any key omitted falls back to its default. Settings are merged over the defaults and then over any value previously saved by the user in localStorage, so user preferences always win.

Panel & Settings API

addTab(name, opts) → slug

Adds a tab to the dockable panel. Returns the slug used in the element id.

opts: { order: number, icon: SVGElement|string, activate: bool }

addSettingsTab(name, opts) → slug

Adds a tab to the settings modal.

getTabEl(name) → HTMLElement | null

Returns the panel tab content element. Element id: uikit-tab-{slug}.

getSettingsTabEl(name) → HTMLElement | null

Returns the settings tab content element. Element id: uikit-settings-tab-{slug}.

openSettings(tabName?)

Opens the settings modal, optionally activating a tab by name.

closeSettings()

Closes the settings modal.

setPanelPosition(pos)

Sets panel position (top right bottom left).

setPanelVisible(visible)

Shows or hides the panel. Persists to settings. In push mode, adjusts page layout accordingly.

setPanelMode(mode)

Sets panel mode (overlay or push). In push mode the panel shifts page content aside instead of floating over it.

setPanelOpacity(value)

Sets the inactive opacity (0.1–1.0). Saves to settings and restarts the inactivity timer.

svgFromString(svgString) → SVGElement | null

Parses an SVG string and returns a proper SVG DOM element.

Panel Behaviour

Overlay vs Push mode

  Overlay Push
Panel position Floats over page content Shifts page content aside
Idle fade Yes (fades to inactive opacity) Yes (if auto-hide is off)
Auto-hide Yes Yes

Inactivity timer

When autoHideDelay is greater than 0, a timer starts on every mouse movement and resets each time the mouse moves.

Setting autoHideDelay to 0 disables the timer entirely; the panel stays at opacityActive at all times.

Button Factory

createButton(label, opts) → HTMLButtonElement

Creates a styled button element.

opts:

Option Type Default Description
style 'default'|'primary'|'ghost'|'danger' 'default' Button visual style
onClick function|null null Click handler
className string '' Extra CSS class(es)
title string|null null Tooltip text
disabled bool false Initially disabled
var ok = Plugins.uikit.createButton('Save', {
  style: 'primary',
  onClick: function () { m.close(); }
});
m.footerEl.appendChild(ok);

var cancel = Plugins.uikit.createButton('Cancel', { style: 'ghost' });

Plugin Modal API

createModal(slug, opts) → handle

Creates and registers a modal. Idempotent — calling again with the same slug updates opts and returns the existing handle.

opts:

Option Type Default Description
title string|false false Title text. Shows title bar if set.
titleBar bool auto Force title bar on/off.
closeButton bool true Show a close button.
closeButtonPosition 'left'|'right' 'right' Close button placement.
closeOnBackdrop bool true Click outside to close.
closeOnEsc bool true Escape key to close.
border bool true Show border.
borderStyle string theme CSS border shorthand.
borderRadius string theme CSS border-radius.
resizable bool false Drag handle on bottom-right.
width string '480px' Initial width.
height string 'auto' Initial height.
minWidth string '200px' Min width (resizable).
minHeight string '80px' Min height (resizable).
className string '' Extra CSS class(es).
backdrop bool true Dimming backdrop.
footer bool false Bottom button bar.
onOpen function|null null Called after modal opens.
onClose function|null null Called before close. Return false to prevent.

Handle object:

{
  contentEl,  // <div> for your content
  footerEl,   // <div> for buttons (null if footer:false)
  open(),     // open the modal
  close(),    // close the modal
  destroy()   // remove from DOM and registry
}

openModal(slug)

Opens a registered modal by slug.

closeModal(slug)

Closes a modal. Calls onClose hook first — if it returns false, the close is prevented.

destroyModal(slug)

Removes a modal from the DOM and internal registry.

getModal(slug) → handle | null

Returns the handle for an existing modal, or null.

Example

var m = Plugins.uikit.createModal('my-dialog', {
  title: 'Settings',
  resizable: true,
  footer: true,
  width: '500px',
  onClose: function () {
    console.log('modal closing');
  }
});

m.contentEl.innerHTML = '<p>Plugin content here</p>';

var saveBtn = Plugins.uikit.createButton('Save', {
  style: 'primary',
  onClick: function () { m.close(); }
});
m.footerEl.appendChild(saveBtn);

m.open();

Dialogs

info(message, opts) → Promise

Shows a modal with a message and an OK button. Returns a Promise that resolves when OK is clicked. The modal is auto-destroyed.

await Plugins.uikit.info('Scan complete.', { title: 'Done' });

opts: { title: 'Information', okLabel: 'OK', width: '400px' }

message can be a string or an HTMLElement.

question(message, opts) → Promise<boolean>

Shows a modal with OK / Cancel buttons. Resolves true (OK) or false (Cancel). Auto-destroyed.

var yes = await Plugins.uikit.question('Delete this bookmark?', {
  title: 'Confirm',
  okLabel: 'Delete',
  cancelLabel: 'Keep'
});
if (yes) { /* confirmed */ }

opts: { title: 'Confirm', okLabel: 'OK', cancelLabel: 'Cancel', width: '400px' }

Toast Notifications

Replaces the standalone notify plugin. Toasts stack vertically with auto-dismiss timers that pause on hover.

toast(message, opts) → id

Shows a toast notification. Returns a unique ID for early dismissal.

opts:

Option Type Default Description
type string 'info' 'info', 'success', 'warning', 'error'
title string|false false Bold title line above the message.
timeout number (ms) 4000 Auto-dismiss delay. 0 = never.
closable bool true Show × close button.
position string 'bottom-center' See positions below.

Positions: 'top-left', 'top-center', 'top-right', 'bottom-left', 'bottom-center', 'bottom-right'

Plugins.uikit.toast('Signal locked.', { type: 'success', timeout: 3000 });

Plugins.uikit.toast('Low SNR detected.', {
  type: 'warning',
  title: 'Warning',
  timeout: 5000
});

dismissToast(id)

Immediately dismisses a toast by ID (animates out then removes).

dismissAllToasts()

Dismisses all visible toasts.

Hover pause

When the mouse cursor enters a toast, the auto-dismiss timer pauses and the progress bar freezes. When the cursor leaves, the timer resumes with the remaining time.

Loading Overlay

loading(el, show)

Shows or hides a dimming overlay with a spinner over any DOM element.

Plugins.uikit.loading(panelEl, true);
await fetchData();
Plugins.uikit.loading(panelEl, false);

Works on modal content too:

var m = Plugins.uikit.getModal('my-modal');
Plugins.uikit.loading(m.contentEl, true);

Developer Helpers

These methods are available for plugin developers to build consistent UI that matches the uikit style.

el(tag, opts) → HTMLElement

DOM element factory. Creates and optionally appends a fully configured element in one call.

Key Type Description
cls string Sets className
text string Sets textContent
html string Sets innerHTML
id string Sets id
title string Sets title
type string Sets type (for inputs)
attrs object setAttribute(k, v) for each key
data object el.dataset[k] = v for each key
style string|object CSS text string or { prop: value }
on object addEventListener(event, handler) for each key
children array Child elements to append (falsy items skipped)
parent HTMLElement If set, appends the new element to this parent
disabled bool Sets el.disabled = true
var btn = Plugins.uikit.el('button', {
  cls: 'owrx-uikit__btn owrx-uikit__btn--primary',
  text: 'Go',
  on: { click: function () { doSomething(); } },
  parent: containerEl
});

createDualSlider(opts) → handle

Creates a dual-thumb range slider for selecting a [lower, upper] range. Both thumbs share a single track with a highlighted fill between them. The lower thumb cannot exceed the upper thumb and vice versa.

opts:

Key Type Default Description
min number 0 Minimum value
max number 1 Maximum value
step number 0.05 Step size
lower number min Initial lower thumb value
upper number max Initial upper thumb value
onInput function(lo, hi) — Called on every thumb move (live preview)
onChange function(lo, hi) — Called on thumb release (persist/apply)

Handle object:

{
  el,                    // root <div> to insert into your layout
  setDisabled(bool),     // enable/disable both thumbs
  setValues(lo, hi)      // programmatically update both thumb positions
}

var slider = Plugins.uikit.createDualSlider({
  min: 0, max: 1, step: 0.05,
  lower: 0.2, upper: 0.8,
  onInput: function (lo, hi) {
    previewEl.textContent = Math.round(lo * 100) + '% – ' + Math.round(hi * 100) + '%';
  },
  onChange: function (lo, hi) {
    saveMySettings(lo, hi);
  }
});
myContainer.appendChild(slider.el);

renderRadioGroup(container, name, options, current, onChange)

Renders a group of styled radio buttons into container, clearing any existing content.

Plugins.uikit.renderRadioGroup(myDiv, 'my-group',
  ['option-a', 'option-b', 'option-c'],
  'option-a',
  function (val) { applyOption(val); }
);

Icon builders

All return an <svg> element sized 16×16 by default.

Method Description
iconArrow(dir) Chevron arrow. dir: 'up' | 'down' | 'left' | 'right'
iconCog() Settings / gear icon
iconChevron() Up-pointing chevron (collapse indicator)
iconHide() Horizontal lines (hide/minimise indicator)
iconClose() × close icon
iconPanel() Panel / window icon (24×24)
var arrow = Plugins.uikit.iconArrow('right');
myButton.appendChild(arrow);

buildSvg(viewBox, paths, size) → SVGElement

Low-level SVG builder used by all icon helpers. paths is an array of inner SVG markup strings. size defaults to 16.

var icon = Plugins.uikit.buildSvg('0 0 24 24', [
  '<circle cx="12" cy="12" r="5"/>',
  '<path d="M12 2v2M12 20v2"/>'
], 20);

CSS Classes

All styles are scoped under .owrx-uikit. Button classes available for use in modals and footers:

The dual-range slider is styled via .owrx-uikit__dual-range and its children — no extra work needed if you use createDualSlider.

Demo Plugin

See receiver/example_uikit/ for a working demo that exercises every feature described above. Load it after uikit:

await Plugins.load('https://0xaf.github.io/openwebrxplus-plugins/receiver/uikit/uikit.js');
await Plugins.load('https://0xaf.github.io/openwebrxplus-plugins/receiver/example_uikit/example_uikit.js');

Theme Integration

OWRX+ theme colours

When an OWRX+ theme is active (body.has-theme), uikit surfaces automatically pick up the theme’s colours:

Surface CSS variable used
Panel, content area, active tab --theme-color2
Tab bar, inactive tabs, modal header --theme-color1
Toasts --theme-color2

In themed mode the auto-fade uses element opacity instead of background alpha (so backdrop-filter blur is not expected to show through a solid theme colour).

--uikit-* CSS variables

All uikit colours are driven by CSS custom properties with sensible dark-mode fallbacks. A theme only needs to define the variables it wants to override — undefined variables fall back automatically.

Variable Default Description
--uikit-accent #6f89ff Slider fill, checked radio/checkbox highlight
--uikit-accent-dim rgba(111,137,255,.25) Accent background tint
--uikit-btn-bg rgba(255,255,255,.06) Default button background
--uikit-btn-text #e9edf5 Default button text
--uikit-btn-primary-bg #3b5bfd Primary button background
--uikit-btn-primary-text #ffffff Primary button text
--uikit-btn-danger-bg rgba(226,76,76,.15) Danger button background
--uikit-btn-danger-border rgba(226,76,76,.4) Danger button border
--uikit-btn-danger-text #ff9e9e Danger button text
--uikit-btn-ghost-border rgba(255,255,255,.12) Ghost button border
--uikit-btn-ghost-text #d9dde6 Ghost button text
--uikit-text #f6f7f9 Primary text
--uikit-text-dim #cdd2db Secondary text
--uikit-text-muted #9aa3b2 Muted / label text
--uikit-border rgba(255,255,255,.08) Subtle border
--uikit-border-strong rgba(255,255,255,.35) Strong border (active tab)
--uikit-border-mid rgba(255,255,255,.12) Mid-weight border

Set these on body.theme-yourtheme { } in your theme CSS file. uikit buttons and controls inside .owrx-uikit will inherit them without any extra selectors.

ui_basic_theme reproduces the original flat dark uikit palette (near-black, cool tint) as a proper OWRX+ theme entry. It defines all --uikit-* variables and also corrects the native OWRX+ inputs and buttons for the flat look. Load it alongside uikit:

await Plugins.load('https://0xaf.github.io/openwebrxplus-plugins/receiver/uikit/uikit.js');
await Plugins.load('https://0xaf.github.io/openwebrxplus-plugins/receiver/ui_basic_theme/ui_basic_theme.js');

Then select UI Basic in the OWRX+ theme list.

Native OWRX+ inputs and selects inside modals

uikit adds the openwebrx-panel class to modal bodies and the panel content area. This allows OWRX+ theme CSS to style <input> and <select> elements inside uikit surfaces automatically, matching the rest of the receiver UI. Non-text inputs (checkboxes, radios, range sliders) are exempt via explicit revert rules so their native appearance is preserved.

Keyboard handling in modals

All modals capture keydown and call stopPropagation() so that OWRX+’s global keyboard shortcuts (frequency entry, mode keys, etc.) do not fire while typing in modal inputs. The Escape key is also handled by the modal and does not bubble to the page.

Notes

This site is open source. Improve this page.
